Planning the motherboard and case together

Board size shapes the layout and expansion options without deciding performance on its own.

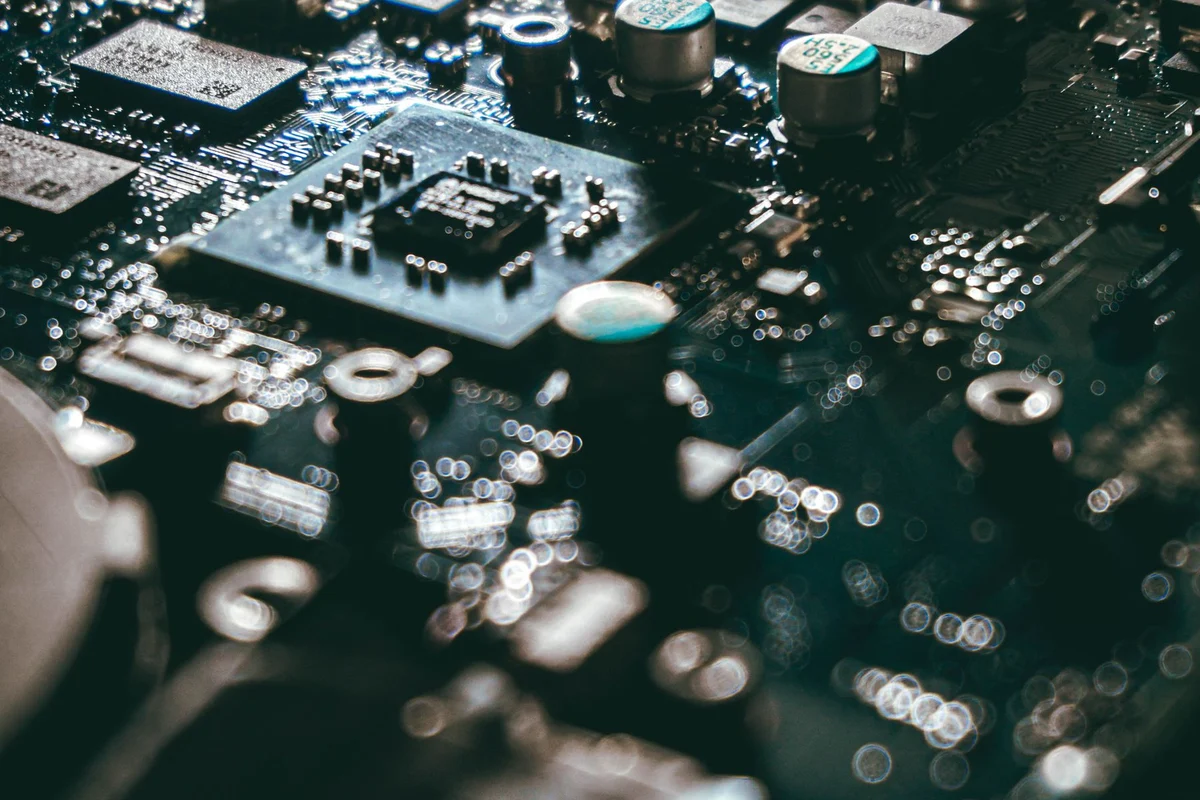

Traces and components on a motherboard

A smaller board changes the layout

Motherboard form factor affects where components and connections can fit. It does not, by itself, rank performance. A compact board can support a powerful processor, while a larger board may simply offer more expansion positions and convenient spacing. Start with the devices you intend to connect rather than assuming the biggest board is automatically the best choice.

Check the case's supported form factors and mounting positions. A case described as a tower may accept several sizes, but the manufacturer's list is more useful than the product photograph. The board must align with the correct standoffs and rear opening. Unneeded standoffs beneath a board can create problems, so assembly requires the case and motherboard instructions together.

Count usable positions

Expansion slots can become unavailable when a wide graphics card covers them. Similarly, an M.2 heatsink or large CPU cooler may complicate access to nearby connectors. Draw the intended layout with the actual components. Counting printed slots without considering the space occupied by installed hardware produces an optimistic expansion plan.

Read the manual's notes about shared resources. Installing a drive in one socket may affect another port or slot on some boards. That is a model-specific behaviour, not something the form-factor name reveals. Check memory slots, fan headers, front-panel connections and storage connectors as well. A board with enough headline features can still lack a convenient connection for the case you chose.

Think about the next maintenance job

Small systems can be rewarding to build, but access is often tighter. Consider how you would replace a drive, clean a filter or reach a connector after the graphics card is installed. A slightly larger case may make those tasks easier without adding any processing performance. Conversely, a compact system may be worth the extra planning when desk space is genuinely limited.

Before purchase, put the motherboard manual beside the case manual and compare the diagrams. Confirm CPU support and any firmware requirement separately; the right size does not imply the right processor support. Keep the final choice tied to a complete build plan. Form factor is a physical constraint that helps organise the system, not a shortcut around compatibility checks.

Draw the finished expansion layout

A useful planning example is a desktop with a large graphics card, two storage devices and a separate capture card. The board may advertise enough sockets for all three roles while the graphics cooler physically covers the expansion position needed by the capture card. Put the actual component dimensions onto the board diagram. Count positions that remain usable after installation, not just the slots printed in the specification.

Next, check the manual's notes for the chosen storage sockets. Some arrangements share resources or affect other connections. Mark the exact sockets you intend to use and read the associated restrictions. If a note is unclear, ask the manufacturer before ordering. Choosing a larger form factor may improve spacing, but it does not automatically remove every electrical or resource-sharing constraint.

Finally, trace the case cables to their internal headers. A front USB connection, fan controller or lighting accessory can require a particular header and consume physical routing space. Decide which optional features you actually need. Omitting an unused accessory can produce a simpler, easier-to-service build than selecting a much larger board merely to connect everything shown in the case advertisement.
